Warrior Pulse-Analog Well Logging System

        The Pulse Interface panel has much of the same functionality of a standard panel but is limited to being able to process positive/negative pulse type tools, and an analog CCL. While the standard interface panel has a digital signal processor capable of digitizing and displaying line signals (telemetry) for visually adjusting pulse discriminators, the PIP does not have these capabilities. In the near future the PIP will be upgradeable to support the SDS Telemetry System. The Warrior Well Logging System for pulse type tools employs advanced software and widely available hardware to provide a cost-effective solution to well logging requirements in cased hole applications.

Its main features include:

Windows Based System Using XP, Vista, Windows 7, 8 and Windows 10

The real time logging operation may be conducted at the same time as other tasks, such as plotting, log heading editor, job ticket preparation etc. The use of Windows ensures longevity, future enhancement and support for the system.

Ease of Use with Graphical User Interface

The system provides an easy to use interface compatible with all current Windows versions. Data monitoring and all log functions are available in separate windows, which may be resized and repositioned as the user wishes.

Product_Pulse System picture

The system supports most downhole tools using pulse type data transmission. It also includes a connector for input of analog signals allowing the system to be used as a data recorder.

The operator interface includes a display of the positive and negative pulse heights (obviating the need for an oscilloscope)and discriminator levels may be set manually, or automatically by the software.

Services are predefined so that the operator simply selects the required services and is presented with a fully configured service set up with the last tool string and calibrations run. If other tools are to be run, the graphical tool string editor is used to select the required tool and load the appropriate parameters and calibrations.

Data monitors include raw and calibrated data of all sensors, including depth and line speed.

Multiple log plot windows may be opened for comparison of, for example, main and repeat log sections. Log plots may be paused and scrolled to any depth and annotations added, while data acquisition continues.

Depth correlation may be performed while logging, with the screen plot and system depth updated until correct depth is attained.

Log curve scales and other presentation parameters may be adjusted while logging and the screen plot redrawn until the desired output is obtained.

The hardcopy plotter may be stopped and started at any time, presenting any interval with any desired presentation format. Multitasking allows log-heading data entry and other ancilliary tasks to be performed while logging continues. In this way rig time is reduced and logs are delivered faster.

Product_PIP1 picture
Product_PIP2 picture

Notebook or Rackmount Computer

The system uses the industry standard Universal Serial Bus (USB) for interconnection between the tool interface and the PC. Almost any Windows based notebook or other personal computer may be used.

Tool Interface and Power Supply

A compact tool interface and power supply is provided which is suitable for the most downhole tools. It inlcudes a tool power supply, depth encoder and line weight sensor interface, as well as circuitry for pulse detection, collar logging, and analog inputs as previously mentioned. The primary functions of the tool interface are controlled from Windows by means of slider bars. The interface panel includes a USB hub for connection of other USB peripherals.

Plotter Support

Generation of the final log print with heading, annotated log sections, calibrations, tool string diagrams, etc., is easily a chieved. The system supports most well log plotter types currently in use, including color and the generation of multiple copies using pre -folded paper. Multiple plotters may be driven concurrently and independently. The system also supports .pdf and .tif file formats as a plot output, which may emailed directly to the customer.

Typical Pulse-Analog Specification:
Software: Hardware:
Mutli-tasking under MS Windows XP, Vista,
Windows 7,8 and Windows 10, 32/64 Bit
Typical Rack Mount Version
System services include: Computer:
Calibrations
Filtering
Graphical Tool String Configuration
Tool String Diagrams
Real Time Data Monitors
High Speed Multi-Well Log Database
3.0 GHz multi-core processor
8 GByte RAM
1 TByte Sata Hard Disk
Dual Display PCIe Graphics
USB 2.0/3.0 Ports
DVD-RW
SVGA 19 inch color rack mount LCD monitor
Rack mount 101 keyboard with mouse or trackball
Acquisition Modules include the following services: Tool Interface and Power Supply:
Gamma Ray
Gravel Pack
Neutron
      Single Detector (most types)
      Dual Detector
Collar Locator
Tracer with Real Time Interpretation
Multi-arm Calipers with Pipe Tally
Casing Inspection
Temperature
Temperature
Temperature
Pressure
Production Logging Analog Tools
User Defined Tools and Services
Recalculation (Relog) from raw data
Log Heading Editor
System Setup Control
      Depth Units
      Data Units
      Display Parameters
Graphical Log Format Editor
Well Sketch
Merge, Splice and TVD Correction
Log Annoations and Curve Labeling
Log Presentation Editor
LAS ASCII Writer and Reader
LIS Reader/Writer
Pulse Detection
Collar Logging
250vdc, 250ma Power Supply
Depth Encoder and Line Tension
Customer Analog and Counter Inputs
16 Channel, 16 bit ADC
6 Channel Counter/Timer
4 Port USB Hub

Plotter, includes support for
        Printrex
        iSys(Veritas)
        Neuralog
        HP DesignJet, PaintJet, DeskJet Color
        Epson Stylus
Dot Matrix, and others
Data/Fax Modem (optional)
Wired and Wireless Surface Sensor Systems

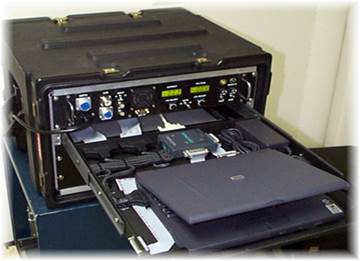

The Pulse-Analog system can be configured with a Carry Case with front I/O connections
or Rack Mount with rear I/O connections.
please contact SDS for details.

        In addition to the Pulse-Analog Logging System, SDS also has the Slick Line Acquisition Box (SLAB). The SLAB box provides CCL, depth, line tension, surface pressure and strain gauge inputs in the standard configuration.

There are also four optional analog and counter inputs which makes this panel ideal for use with slick line and memory logging.

Product SLAB picture
Slick Line Acquistion Box
